Migration with Zero Downtime零宕机迁移

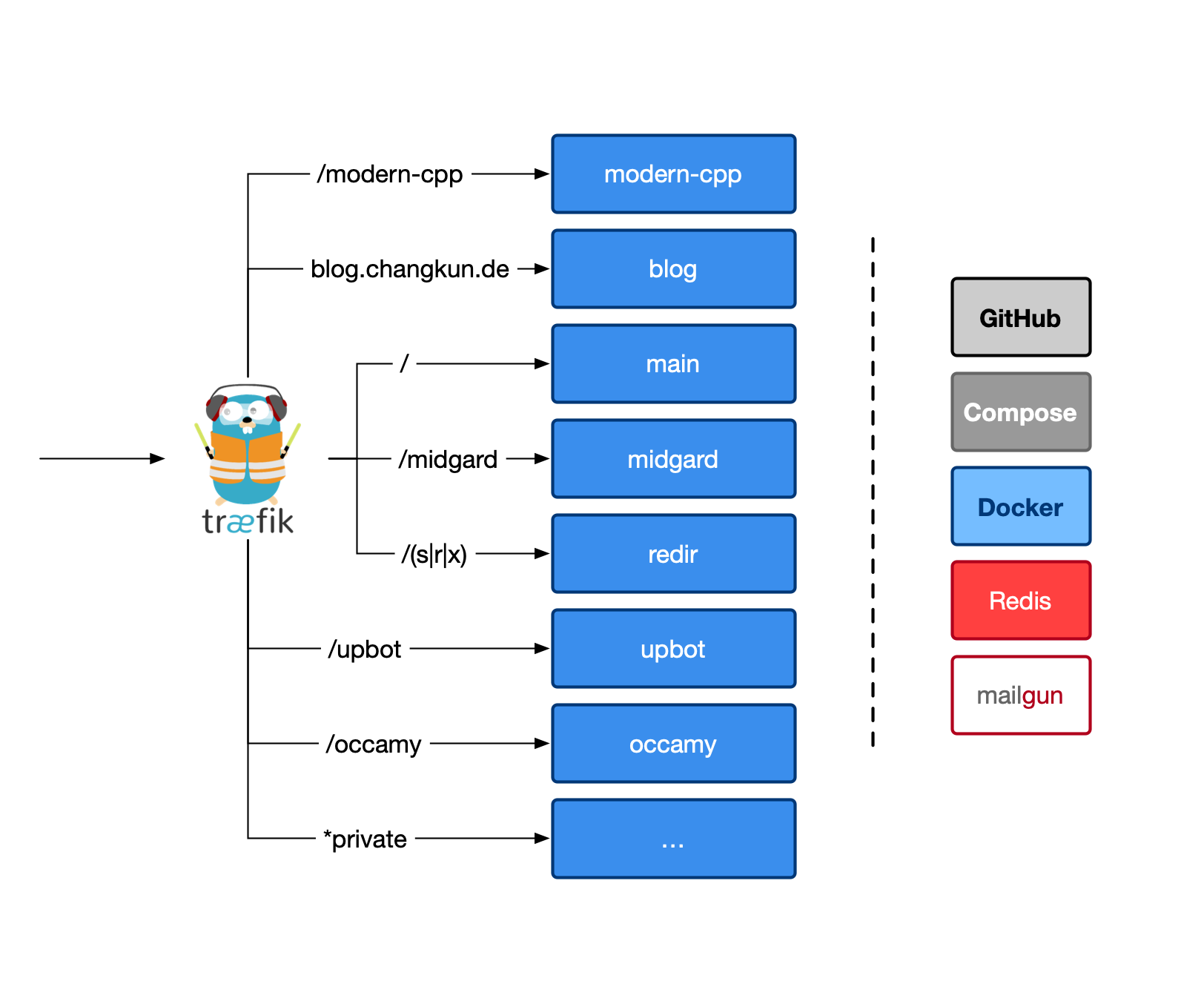

In this post I gave an overview of the restructured architecture of changkun.de, but I didn’t go into detail about how the migration itself was carried out — whether there was any downtime, and so on. This time, let’s take a closer look at the migration process.

Migration Checklist

First, a number of services were running on the changkun.de server, including frequently-used ones like redir and midgard, as shown in the diagram:

These services include:

• https://changkun.de/s/main
• https://changkun.de/s/blog
• https://changkun.de/s/midgard
• https://changkun.de/s/redir
• https://changkun.de/s/upbot
• https://changkun.de/s/modern-cpp-tutorial

And two sites that were previously hosted on changkun.de but now redirect to golang.design:

• https://changkun.de/s/go-under-the-hood
• https://changkun.de/s/gossa

The key challenges of the migration were:

1. How to migrate the data, especially the short-link records stored in redir
2. How to keep the site online during the migration
3. How to update the CI deployment scripts on GitHub Actions

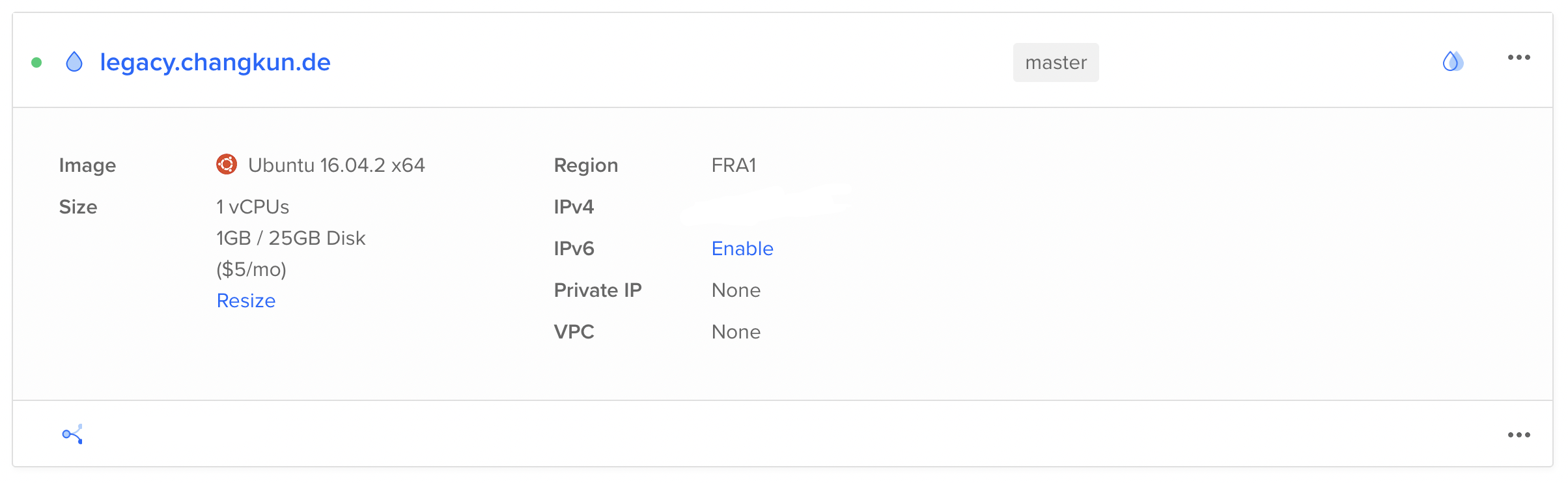

The changkun.de machine was purchased in 2016 and, due to some special circumstances, could not be smoothly upgraded to the 20.04 release. On top of that, due to technical limitations in Digital Ocean itself, it wasn’t even possible to add a VPC. The machine was effectively locked down completely:

One straightforward approach is to simply purchase a new machine, migrate all services to it, and then switch the DNS. However, this approach depends heavily on how tightly the services are coupled to the host environment. If a service has strong dependencies on the machine’s environment, a great deal of server-side configuration is required — which is precisely why containerizing all current services is so important: it makes it possible to spin up a new machine at any time and rapidly deploy existing services.

Let’s walk through the operational steps this process requires.

Configuring Traefik

Our goal is to use Traefik as a reverse proxy. To do that, we need to understand how Traefik 2 works at a basic level. Traefik’s working model is essentially the same as any traditional reverse proxy — it just introduces a lot of new terminology (old wine in new bottles), such as static configuration, dynamic configuration, routers, services, and so on. These concepts all have counterparts in Nginx.

For example, in Nginx you can use:

1

sudo service nginx reload

to achieve what Traefik calls a Dynamic Configuration update; and:

1

sudo service nginx restart

to achieve what Traefik calls a Static Configuration update. You can serve static files with a configuration like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

server {
    server_name changkun.de;
    access_log /www/logs/www.changkun.de.access.log;
    error_log  /www/logs/www.changkun.de.error.log;
    root /www;
    index index.html;
    error_page 404 /404.html;
    location / {
        try_files $uri $uri/ =404;
        autoindex on;
    }
    ...
}

And configure what Traefik calls a redirect Middleware like this:

1
2
3
4
5
6

server {
    ...
    rewrite ^/golang/(.*)$ https://golang.design/under-the-hood/$1 permanent;
    rewrite ^/gossa(.*)$ https://golang.design/gossa/$1 permanent;
    ...
}

And even configure what Traefik calls a Service Proxy:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

server {
    ...
    location ~ ^/(x|s|r)/ {
        proxy_pass http://0.0.0.0:9123;
        proxy_set_header Host            $host;
        proxy_set_header X-Forwarded-For $remote_addr;
    }
    location = /upbot {
        proxy_pass http://0.0.0.0:9120;
        proxy_set_header Host       $host;
        proxy_set_header X-Forwarded-For $remote_addr;
    }
    location /midgard/ {
        proxy_pass          http://0.0.0.0:9124;
        proxy_set_header    Host             $host;
        proxy_set_header    X-Real-IP        $remote_addr;
        proxy_set_header    X-Forwarded-For  $proxy_add_x_forwarded_for;
        proxy_set_header    X-Client-Verify  SUCCESS;
        proxy_set_header    X-Client-DN      $ssl_client_s_dn;
        proxy_set_header    X-SSL-Subject    $ssl_client_s_dn;
        proxy_set_header    X-SSL-Issuer     $ssl_client_i_dn;

        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";

        proxy_read_timeout 1800;
        proxy_connect_timeout 1800;
        client_max_body_size 2M;
    }
}

And so on. Of course, this kind of configuration is quite basic — it doesn’t handle load balancing across multiple container instances, for instance. But since we’ve already decided to switch to Traefik, we can more conveniently leverage container isolation to address load balancing concerns.

Static Configuration

The first thing to sort out when configuring Traefik is the static configuration, which covers three main concerns:

1. EntryPoints: the externally exposed ports
2. certificatesResolvers: TLS certificates
3. providers: where to source dynamic configuration from

Traefik’s Provider is an implementation of configuration discovery and supports many different mechanisms. I personally prefer the file-based approach, as it makes things easy to categorize. So I chose the File Provider.

The following configuration, for example, forces HTTPS, sets up the certificate resolver, and specifies that dynamic configuration should be loaded from files:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

entryPoints:
  web:
    address: :80
    http:
      redirections:
        entryPoint:
          to: websecure
          scheme: https
  websecure:
    address: :443
certificatesResolvers:
  changkunResolver:
    acme:
      email: hi@changkun.de
      storage: /etc/traefik/conf/acme.json
      httpChallenge:
        entryPoint: web
providers:
  file:
    directory: /etc/traefik/conf/
    watch: truef

Dynamic Configuration

Dynamic configuration primarily covers routing information for the services. Taking the main site as an example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

http:
  routers:
    # github.com/changkun/main
    to-main:
      rule: "Host(`dev.changkun.de`)"
      tls:
        certResolver: changkunResolver
      middlewares:
        - main-errorpages
      service: main
  middlewares:
    main-errorpages:
      errors:
        status:
          - "404"
        service: main
        query: "/404.html"
  services:
    main:
      loadBalancer:
        servers:
        - url: http://main

Finally, Traefik is launched via docker compose, together with a traefik_proxy Docker network:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

version: '3'

services:
  traefik:
    container_name: traefik
    image: traefik:v2.2
    ports:
      - "80:80"
      - "443:443"
      - "8080:8080"
    networks:
      - proxy
    volumes:
      - ./traefik.yml:/etc/traefik/traefik.yml
      - ./conf:/etc/traefik/conf
      - ./logs:/logs
networks:
  proxy:
    driver:
      bridge

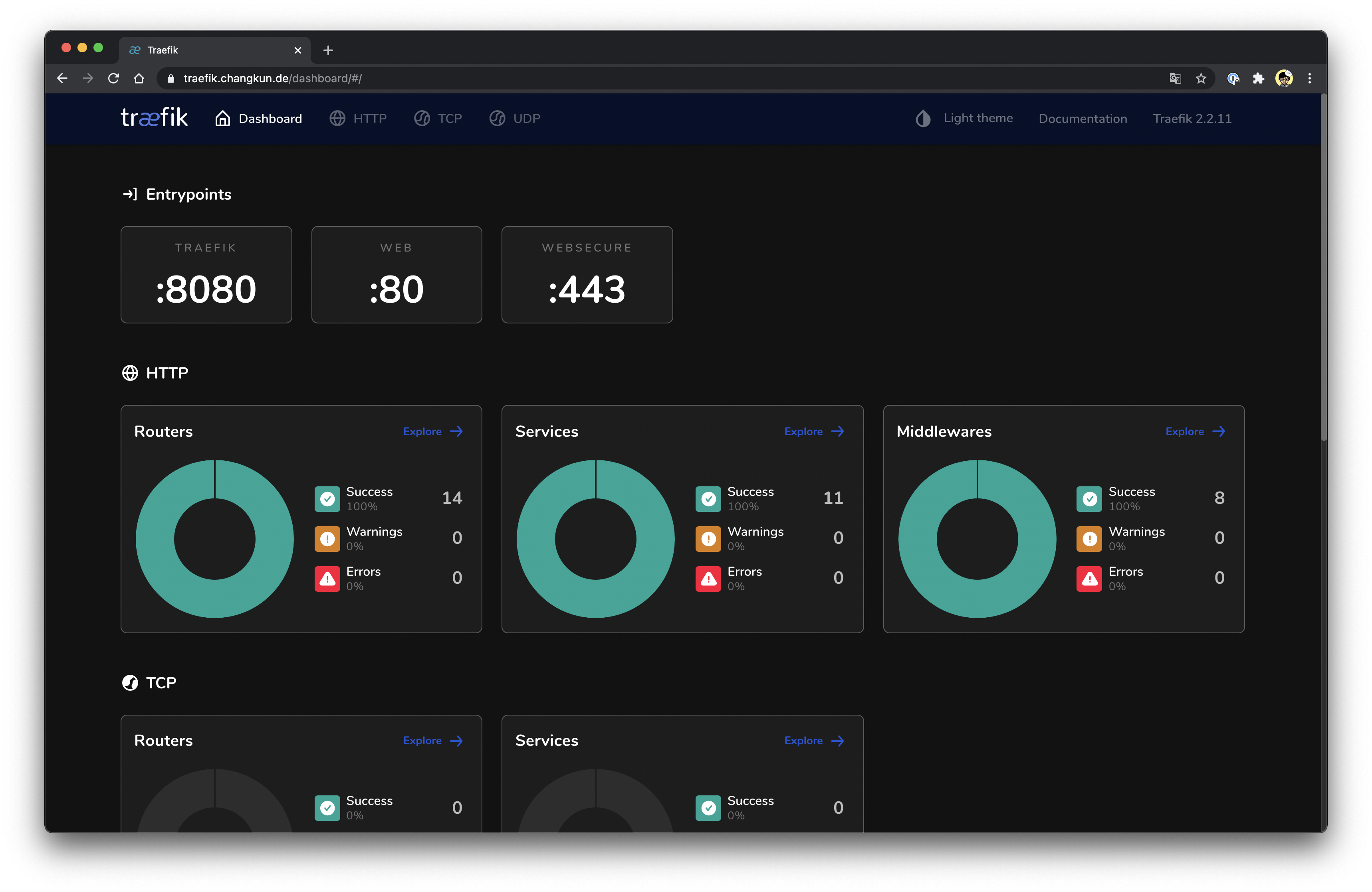

Traefik also comes with a very fancy Dashboard:

And configuring it is entirely painless:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

http:
  routers:
    dashboard:
      rule: Host(`traefik.changkun.de`) && (PathPrefix(`/api`) || PathPrefix(`/dashboard`))
      service: api@internal
      tls:
        certResolver: changkunResolver
      middlewares:
        - auth
  middlewares:
    auth:
      basicAuth:
        users:
          - "changkun:password"

Of course, there is much more to the full dynamic configuration. All of it can be found at changkun.de/s/proxy.

Service Deployment

Taking the main site changkun.de/s/main as an example, deploying a containerized service is extremely straightforward:

1

make build && make up

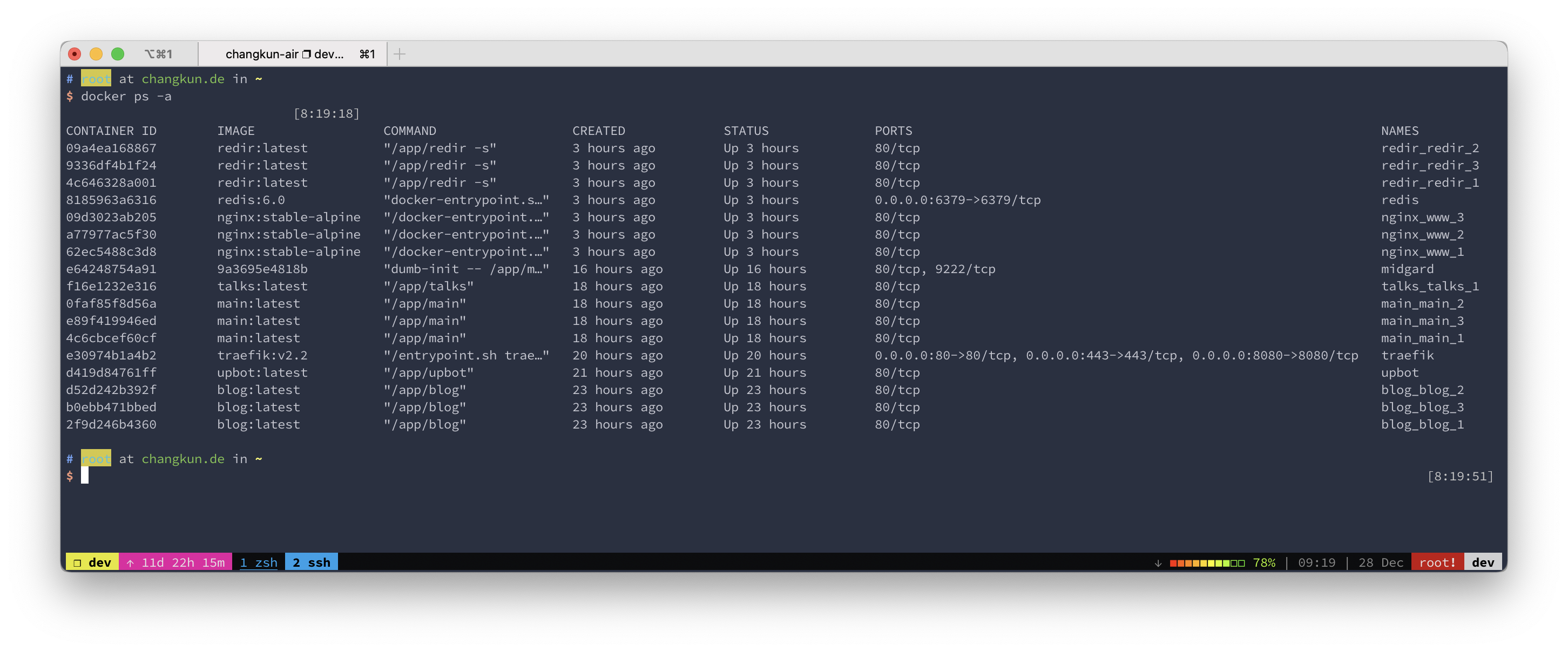

After deploying all services, every container was up and running normally:

As you can see, there are a few single points among the currently running services. The reasons are:

1. Traefik: only one instance can be deployed per machine
2. Midgard: a stateful service
3. Redis: used as a database

Of these single points, only Redis can be upgraded to a cluster; the other two cannot be horizontally scaled for the time being.

Midgard itself maintains a global clipboard stored within the application, and also manages WebSocket connections between the Daemon and Server — it is inherently stateful.

Load balancing comes in many flavors. In a cluster environment, Traefik itself can run as multiple replicas, distributing load across different nodes — inter-node balancing can rely on lower-level mechanisms such as DNS, link-layer, or network-layer balancing. But in changkun.de’s single-machine setup, the reverse proxy simply listens on ports 80 and 443 to perform application-layer load balancing across containers on that machine, with no room for horizontal scaling.

GitHub Actions Deployment Scripts

changkun/modern-cpp-tutorial

Deployment for [changkun/modern-cpp-tutorial] is a bit tricky, because the project requires building a PDF, which depends on pandoc and texlive.

Back in the day, to speed up the build process and avoid reinstalling a full texlive on every update, I published a changkun/modern-cpp-tutorial:build-env image. Naturally, since it packages a complete texlive-full, the image size is enormous. But pulling an image is still more convenient than running apt install textlive-full.

In the modern-cpp-tutorial repository’s github-action/workflow, the deployment approach is quite blunt: it simply scps the built files directly onto the server.

So how do we adapt this deployment flow to a Traefik setup that doesn’t serve static files on its own? There are two options:

1. Build on the server: log into the server to perform the build whenever a new commit lands

The downside of this approach is that the server has to pull the latest commit and consume server resources to build — which is not fundamentally different from just uploading pre-built files.

2. Keep the original deployment approach and run a dedicated Nginx on the server solely for serving static files. For example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

version: '3'
  services:
  www:
      image: nginx:stable-alpine
      restart: always
      volumes:
      - /www:/usr/share/nginx/html
      deploy:
      replicas: 3
      networks:
      - traefik_proxy
  networks:
  traefik_proxy:
      external: true

This serves all assets under the /www directory. You’d then just upload the compiled modern-cpp-tutorial files into that directory — no container update required.

• Why not use a CDN? No budget. Care to make a donation?
• Why not use Cloudflare? Laziness. On one hand, I’d rather not introduce too many external dependencies for a personal site; on the other hand, golang.design already uses Cloudflare, so it acts as an A/B comparison with changkun.de.

After a bit of thought, I opted for option two, letting modern-cpp serve as a special case (using Go to bundle static files inside a C++ tutorial seems a bit odd, and implementing it in C++ would be far more work than doing it in Go).

For this decision, no changes to the modern-cpp-tutorial repository itself are needed — only the repository secrets need to be updated, such as the server’s private key, the login username, the upload path, and similar details.

changkun/blog

Besides modern-cpp-tutorial, the other repository using GitHub Actions CI is this blog itself. Although the blog could also use option two — directly uploading static files — in order to achieve the original goal, I ultimately went with option one:

1

ssh $USER@$DOMAIN "cd changkun.de/blog && git fetch && git rebase && make build && make up"

That is, using GitHub Actions to log into the server, pull the repository, build, and redeploy — serving as a counterpart to method two.

DNS Update

Not much to say here. Once the services were confirmed to be running correctly under the dev.changkun.de domain, I pointed the DNS record for changkun.de to the new machine.

Throughout the entire migration, upbot never fired a single alert, which means the zero-downtime migration was a success for all running services :)

Summary

This post described how changkun.de was migrated from one machine to another without any downtime. In a production setting, database services would typically be deployed on separate nodes with application services connecting to them via URL.

Fortunately, changkun.de doesn’t deal with large amounts of data, so the migration didn’t involve much data movement — it was straightforward to copy data directly from one machine to the other.

All services were first brought up under dev.changkun.de. Once all services were confirmed to be working, the DNS for the root domain changkun.de was updated, enabling a seamless cutover.

For CI-deployed services, two different approaches are currently in use:

1. modern-cpp: static files are compiled on GitHub Actions and uploaded directly to the server;
2. blog: GitHub Actions SSHes into the server and performs the compile-and-run there.

There is certainly room for more “enterprise-grade” approaches: setting up a private build system like Jenkins that only accepts GitHub repository webhooks; building directly on the machine; purchasing extra Docker Registry space, building and pushing to the registry, then notifying the machine to pull the updated image; or going all-in with k8s and Helm…

But remember: “premature optimization is the root of all evil.”
